Introduction
![Smiling girl with turban on black-orange DAMAXED e-bike, scenic backdrop of snowy mountains and fields.](https://cdn.shopify.com/s/files/1/0712/5427/8447/files/Girl_Riding_DAMAXED_Electric_Mountain_Bike_Outdoors_1024x1024.jpg?v=1694158631)
E-bike controllers are often referred to as the "brain" of an electric bicycle. They manage everything from speed and torque to the overall performance of your e-bike. Understanding how they work can significantly enhance your e-bike experience, whether you're a rider, a retailer, or a manufacturer. This guide aims to demystify e-bike controllers and provide you with the knowledge you need to make informed decisions.
Why E-Bike Controllers are Crucial
Controllers serve as the central hub that connects all the electrical components of an e-bike, such as the battery, motor, throttle, display, pedal-assist, and various sensors. They are ensuring that all parts work in harmony.
Controllers use complex algorithms to determine how the motor should behave based on various inputs. They monitor parameters like battery voltage, pedal cadence, and throttle position to deliver the optimal riding experience.
Safety Measures
Controllers are responsible for managing the power output from the battery to the motor, ensuring that the bike operates within safe parameters. This is crucial for preventing overheating and potential accidents.
Performance Tuning
The controller also plays a vital role in optimizing the performance of your e-bike. It adjusts the power delivery based on your riding conditions, whether you're climbing a steep hill or cruising on a flat road.
User Customization
Modern e-bike controllers come with various settings that allow riders to customize their riding experience. From adjusting the pedal assist levels to setting a maximum speed limit, the controller gives you the power to tailor your ride.
Types of E-Bike Controllers
By Motor Types

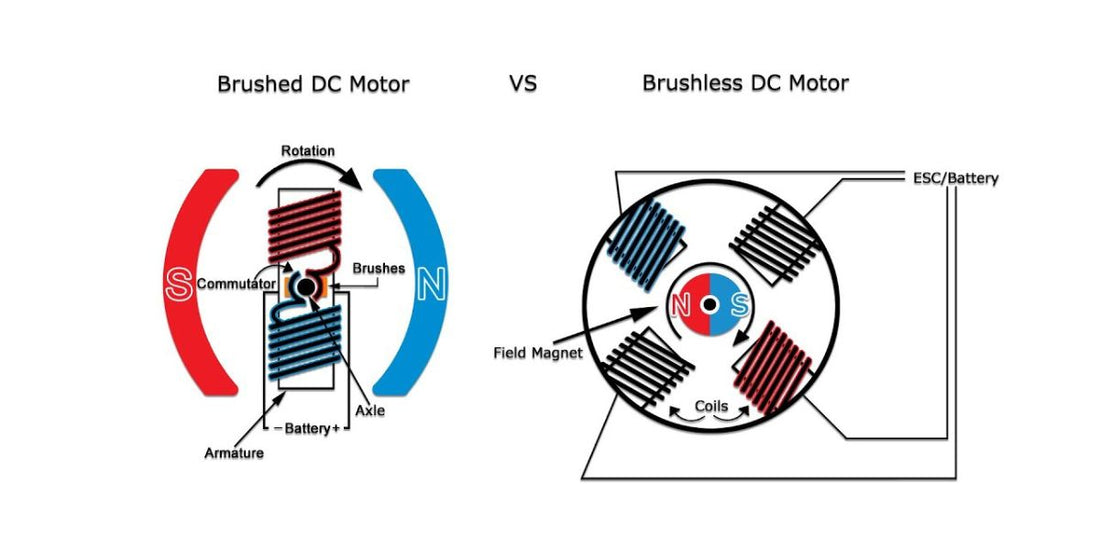

![Diagram comparing parts of brushed and brushless DC motor controllers for e-bikes.](https://cdn.shopify.com/s/files/1/0712/5427/8447/files/Brushed_vs_Brushless_DC_Motor_Controllers_1024x1024.jpg?v=1694230038)
Brushed DC Motor Controllers
How They Work: These controllers are designed for brushed DC motors, which utilize brushes and a commutator to switch the current direction in the windings. The controller regulates the voltage and current supplied to the motor.
Advantages:
Simplicity: Their straightforward design makes them easy to understand and repair.
Cost-Effectiveness: Generally cheaper to produce, making them accessible for budget-conscious consumers.
DIY-Friendly: Their simplicity makes them a popular choice for DIY e-bike projects.
Disadvantages:
Efficiency: The friction from the brushes generates heat, reducing overall efficiency.
Maintenance: Brushes wear out and need to be replaced, adding to long-term costs.
Noise and Heat: The friction also results in a noisier operation and can cause the motor to heat up.
Brushless DC Motor Controllers (BLDC)
How They Work: BLDC controllers are for brushless motors, which use a combination of permanent magnets and electronic commutation. The controller uses algorithms to manage the motor's three-phase electric currents.
Advantages:
Efficiency: Higher efficiency due to the absence of brush friction.
Longevity: No brushes mean less wear and tear, extending the motor's lifespan.
Quiet Operation: The lack of brush friction results in quieter operation, enhancing user experience.
Disadvantages:
Complexity: The electronic commutation requires more complex circuitry.
Cost: The initial investment is higher due to the complexity and quality of components.
By Functionality
BLDC with Hall Sensors
How They Work: These controllers use Hall Effect sensors to precisely determine the rotor's position, enabling more accurate control over the motor phases. This results in smoother acceleration and deceleration.
Advantages:
Precision: The Hall sensors provide real-time feedback, allowing for highly accurate motor control.
Low-Speed Performance: They offer better torque at low speeds, making them ideal for challenging terrains.
Disadvantages:
Wiring Complexity: The Hall sensors require additional wiring, making the installation process more complex.
Cost: The added components and complexity slightly elevate the cost.
Square Wave Controllers
How They Work: These controllers generate a square or rectangular wave signal, which results in a more abrupt and less smooth power delivery to the motor.
Advantages:
Simplicity: Less complex circuitry makes them easier to manufacture and maintain.
Affordability: Lower production costs make them more budget-friendly.
Disadvantages:
Noise: The abrupt power delivery can result in a noisier operation.
Ride Quality: The less smooth power delivery can make the ride feel jerky or unstable.
Sine Wave Controllers
How They Work: These controllers produce a sinusoidal waveform, allowing for a smoother and more natural power curve, which translates to a more comfortable ride.
Advantages:
Quiet and Smooth: The sinusoidal waveform ensures a quiet and smooth riding experience.
Efficiency: They are generally more efficient, especially at higher speeds.
Disadvantages:
Complexity: The circuitry is more complex, requiring advanced algorithms for waveform generation.
Cost: The added complexity and efficiency come at a higher initial cost.
Key Features to Look For
Voltage and Current Ratings: Ensure compatibility with your e-bike's battery and motor.
Programmability: The ability to fine-tune settings can make a significant difference in your riding experience.
Connectivity: Some controllers offer Bluetooth or Wi-Fi connectivity for easier adjustments via a smartphone app.
Armed with this in-depth knowledge, you can make strategic choices in controller selection that align with your specific needs and market demands. As a leading e-bike manufacturing facility, we emphasize that the choice of controller is not just a component decision, but a critical factor that influences the performance, efficiency, and user satisfaction of the e-bikes you offer to your customers.
Real-World Applications
Mountain E-Bikes:
![Camouflage-colored electric mountain bike by DAMAXED](https://cdn.shopify.com/s/files/1/0712/5427/8447/files/Damaxed_Camouflage_Electric_Mountain_Bike_efe865e8-0cf3-48ce-ac74-f397a8a10fa8_1024x1024.jpg?v=1694230337)
For those looking to experience the pinnacle of e-bike performance, our Mountain E-Bike comes equipped with an advanced controller that embodies all the features discussed in this guide.
For those who are venturing into rugged terrains and steep inclines, controllers with high current ratings are indispensable. These controllers provide the necessary torque and power, ensuring that the e-bike can conquer challenging landscapes without compromising on performance. Brands targeting the mountain e-bike market should consider controllers that offer dynamic power adjustments to adapt to varying terrains.
Urban Commuters:
![Side view of a blue urban commuter e-bike by DAMAXED.](https://cdn.shopify.com/s/files/1/0712/5427/8447/files/Damaxed_Blue_Urban_Commuter_Ebike_ab0bbe73-9aa1-428a-8167-b17ad94a1c7d_1024x1024.jpg?v=1694230557)
For those looking to experience the pinnacle of e-bike performance, our Urban Commuters e-bike model comes equipped with an advanced controller that embodies all the features discussed in this guide.
In bustling cityscapes where stop-and-go is the norm, programmable controllers offer a significant advantage. These controllers allow riders to customize speed limits, pedal assist levels, and even regenerative braking settings. For e-bike brands focusing on the urban commuter segment, offering a controller with user-friendly software can be a unique selling point.
Touring E-Bikes:
![Side view of a gray touring e-bike manufactured by DAMAXED factory.](https://cdn.shopify.com/s/files/1/0712/5427/8447/files/Damaxed_Gray_Touring_Ebike_Factory_dc428bc0-9567-4d57-b068-c0253e214f9a_1024x1024.jpg?v=1694230758)
For those looking to experience the pinnacle of e-bike performance, our latest Touring E-Bike model comes equipped with an advanced controller that embodies all the features discussed in this guide.
Long-distance riders require controllers that can manage multiple sensor inputs for an optimized riding experience. Advanced controllers in touring e-bikes often integrate both torque and cadence sensors, providing a balanced and efficient ride that maximizes battery life while ensuring rider comfort. Brands targeting this niche should look for controllers that support a wide range of sensor inputs and offer long-term reliability.
Future Trends
![Highway with 'The Future' text and arrow on pavement, set against a green field and clear sky.](https://cdn.shopify.com/s/files/1/0712/5427/8447/files/Damaxed_Highway_To_Future_1024x1024.jpg?v=1694230999)
The e-bike controller landscape is on the brink of a technological revolution, thanks to advancements in IoT and AI. Here's what the future could hold:
Predictive Maintenance: Future controllers may have the ability to predict mechanical issues before they become critical, alerting both the rider and the e-bike brand for timely intervention.
Adaptive Learning: With machine learning algorithms, next-gen controllers could adapt to a rider's behavior and riding conditions, automatically adjusting settings for optimal performance and energy efficiency.
Collision Avoidance Systems: As safety becomes a paramount concern, future e-bike controllers could integrate with advanced sensor systems to detect potential collisions and take preventive actions, such as slowing down the e-bike or alerting the rider.
Conclusion
![Gray e-bikes in Damaxed warehouse awaiting shipment post-quality inspection.](https://cdn.shopify.com/s/files/1/0712/5427/8447/files/Damaxed_Warehouse_QualityInspection_1024x1024.jpg?v=1694231202)
Understanding e-bike controllers can give you a significant edge, whether you're a casual rider or a business in the e-bike industry. As technology advances, the role of the controller will only become more critical in shaping the future of e-biking.
For more insights and updates on e-bike technology, feel free to contact us.
