Introduction

In the world of electric bicycles, the role of sensors is akin to the nervous system in the human body. They are the silent orchestrators that make your e-bike smart, safe, and efficient. For manufacturers and brands aiming to offer top-notch products, understanding the nuances of e-bike sensors, particularly torque and cadence sensors, is essential. This comprehensive guide aims to go beyond the surface and delve deep into the science and applications of these sensors.



Why Sensors Matter in E-Bikes

Safety: The Non-Negotiable

In the realm of electric bikes, sensors are not just an add-on; they are a critical safety feature. These sensors serve as the brain behind the machine, interpreting rider input and environmental factors to control the bike's motor and braking system.



For instance, torque sensors can detect how hard the rider is pedaling and adjust the motor assistance accordingly, ensuring a smooth transition between different speeds.



Performance: The Differentiator

Sensors are the unsung heroes that can significantly elevate the performance of an e-bike. They do more than just turn the motor on and off; they fine-tune your riding experience.



For example, cadence sensors measure the speed at which you're pedaling, allowing the bike to provide just the right amount of assistance for optimal energy efficiency.



On hilly terrains, sensors can detect the incline and adjust the motor's power output, making uphill rides less strenuous. In essence, sensors enable a symbiotic relationship between the rider and the e-bike, optimizing performance metrics like speed, power output, and energy consumption. This level of customization sets high-quality e-bikes apart from their less sophisticated counterparts.



User Experience: The Ultimate Goal

The end game of integrating advanced sensors into e-bikes is to enhance the user experience. A bike equipped with state-of-the-art sensors offers a ride that is not just efficient but also incredibly intuitive.



For instance, some e-bikes come with sensors that can detect the weight of a cargo load and adjust the motor's power output accordingly.



Moreover, advanced sensor systems can provide valuable data to the rider through smartphone apps, offering insights into riding habits, energy expenditure, and even maintenance needs. In a market where customer experience is king, a well-integrated sensor system can be a game-changer for e-bike manufacturers and riders alike.





The Two Titans: Cadence Sensors and Torque Sensors

Cadence Sensors: The Unseen Maestro of E-Bike Performance

Credit: Swytch



The Basics

Cadence sensors are the cornerstone of many e-bike systems, especially those designed for casual or entry-level riders. These sensors measure the speed at which the pedals are turning and use this data to control the motor's output. In simpler terms, the faster you pedal, the more assistance you get from the motor.



The Science Behind Cadence Sensors

At the core of a cadence sensor's operation are magnets and a sensing mechanism, often a reed switch or a Hall effect sensor. As the pedals rotate, magnets pass by the sensor, triggering it to send a signal to the e-bike's controller. The controller then adjusts the motor's power output based on the cadence data. This mechanism is relatively straightforward but highly effective for translating pedal speed into motor assistance.



Pros:

Economical: One of the most significant advantages of cadence sensors is their cost-effectiveness. They are generally less expensive than other types of sensors, making them a popular choice for budget-friendly e-bikes.



Ease of Installation: Cadence sensors are relatively simple to install, often requiring just a few screws and cable connections. This ease of installation makes them ideal for DIY e-bike conversions as well.



Suitable for Casual Riding: If you're a casual rider who doesn't require extremely nuanced control over your e-bike's performance, a cadence sensor will likely meet your needs.



Cons:

Less Nuanced Control: Cadence sensors offer less granularity in controlling the motor's output compared to, say, torque sensors. This limitation can be noticeable when you require subtle adjustments in speed or power, such as during steep climbs or descents.



Potential for "Jerky" Riding Experience: Because cadence sensors rely solely on pedal speed, they can sometimes result in a less smooth riding experience. For example, if you suddenly stop pedaling, the motor assistance can cut off abruptly, leading to a "jerky" sensation.

Torque Sensors: The Gold Standard for E-Bike Responsiveness

The Basics

Torque sensors are often considered the pinnacle of e-bike sensor technology, especially for riders who seek a more natural and responsive riding experience. Unlike cadence sensors, which measure pedal speed, torque sensors gauge the actual force applied to the pedals. This allows for a more intuitive interaction between the rider and the e-bike, making the motor's assistance feel like a seamless extension of the rider's own power.



The Science Behind Torque Sensors

The core technology of torque sensors involves strain gauges that are sensitive to the force exerted on the pedals. When you apply force, these strain gauges deform ever so slightly, causing a change in their electrical resistance. This change is then translated into a signal that the e-bike's controller uses to adjust the motor's power output. The result is a highly responsive system that adapts in real-time to the rider's pedaling force.



Pros:

Precise Control: Torque sensors offer unparalleled precision in controlling the e-bike's motor. Whether you're climbing a steep hill or navigating through city traffic, the sensor ensures that the motor's output is perfectly aligned with your pedaling force.



Smooth Power Delivery: One of the standout features of torque sensors is their ability to deliver power smoothly. There are no abrupt changes or "jerks," making for a more comfortable and natural riding experience.



Ideal for Performance-Oriented E-Bikes: If you're into high-performance e-bikes, a torque sensor is almost a must-have. It allows for a level of control and responsiveness that is hard to achieve with other types of sensors.



Cons:

Higher Cost: The advanced technology and superior performance of torque sensors come at a price. They are generally more expensive than cadence sensors, which can be a significant factor for budget-conscious buyers.



Complex Installation: Installing a torque sensor is not as straightforward as a cadence sensor. It often requires specialized tools and expertise, making it less suitable for DIY e-bike conversions.

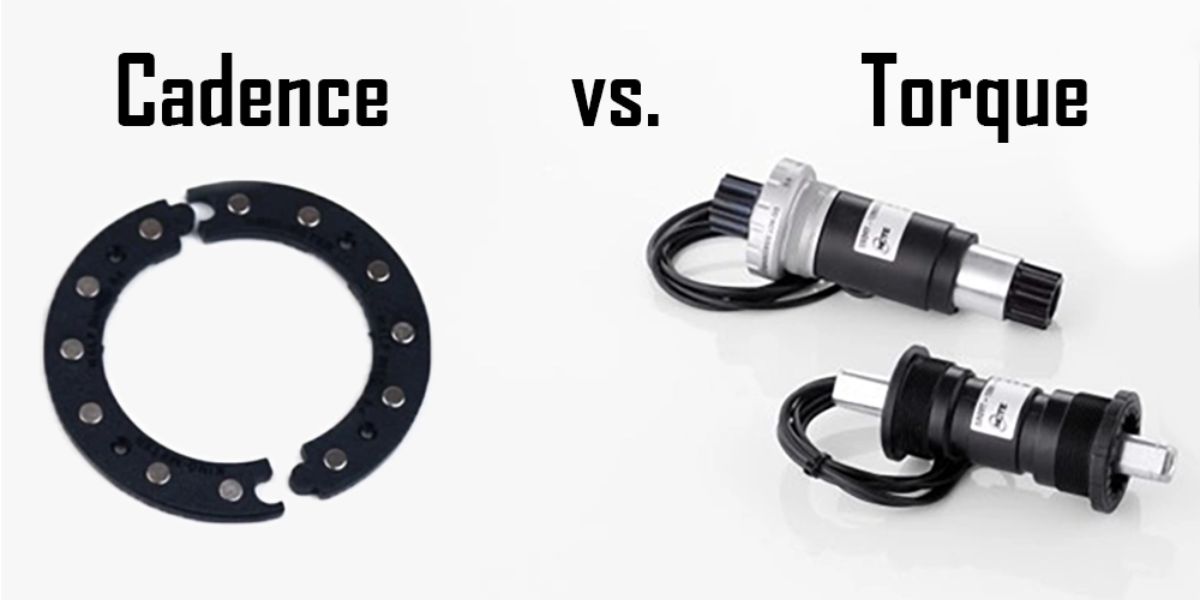

Cadence vs. Torque: What Sets Them Apart

While cadence sensors are generally more straightforward and cost-effective, torque sensors offer a more dynamic and responsive riding experience. Torque sensors adjust the motor's output based on how hard you're pedaling, providing a more natural feel, especially during acceleration and climbing.



The Hybrid Approach: Combined Sensor Systems for the Ultimate E-Bike Experience

The Concept

In the quest for the perfect e-bike experience, some manufacturers are adopting a hybrid sensor system that combines the strengths of both torque and cadence sensors. This innovative approach aims to offer riders the best of both worlds: the nuanced control of torque sensors and the simplicity and affordability of cadence sensors.



Real-World Applications

Mountain E-Bikes:

When it comes to tackling challenging terrains and steep inclines, torque sensors are often the preferred choice. They offer precise control and adaptability, making them ideal for mountain e-bikes where performance is crucial.



Urban Commuters:

For those who primarily use their e-bikes for city commuting, cadence sensors usually suffice. They are more budget-friendly and offer adequate performance for navigating through city streets. Learn more about DAMAXED commuter bike.



Touring E-Bikes:

For long-distance riders, a hybrid sensor system can be the best option. The combination of torque and cadence sensors allows for a balanced performance, ensuring both comfort and efficiency on extended journeys.



Future Trends: AI and IoT in E-Bike Sensors

The future of e-bike sensor technology is incredibly promising, thanks to advancements in Artificial Intelligence (AI) and the Internet of Things (IoT). Here's a glimpse into what the future holds:



Predictive Analytics: Future sensor systems could analyze riding patterns and environmental conditions to predict the rider's needs. For instance, the system might automatically adjust motor assistance based on upcoming terrains, such as hills or rough patches.



Adaptive Learning: AI algorithms could enable the e-bike to "learn" from the rider's behavior over time. This could result in a highly personalized riding experience, where the bike adapts to the unique riding style of the individual.



Collision Avoidance: With IoT connectivity, e-bike sensors could communicate with other smart devices, such as cars and traffic signals. This could pave the way for features like collision avoidance systems, enhancing rider safety.



Conclusion

Navigating the complexities of torque and cadence sensors isn't just a technical endeavor—it's a strategic advantage in the rapidly evolving e-bike landscape. As we stand on the cusp of a technological revolution, spearheaded by AI and IoT, the potential for innovation is boundless.



Don't just keep pace with the industry; set the pace. For more in-depth insights and tailored solutions, contact DAMAXED team to explore how we can elevate your e-bike business experience.
